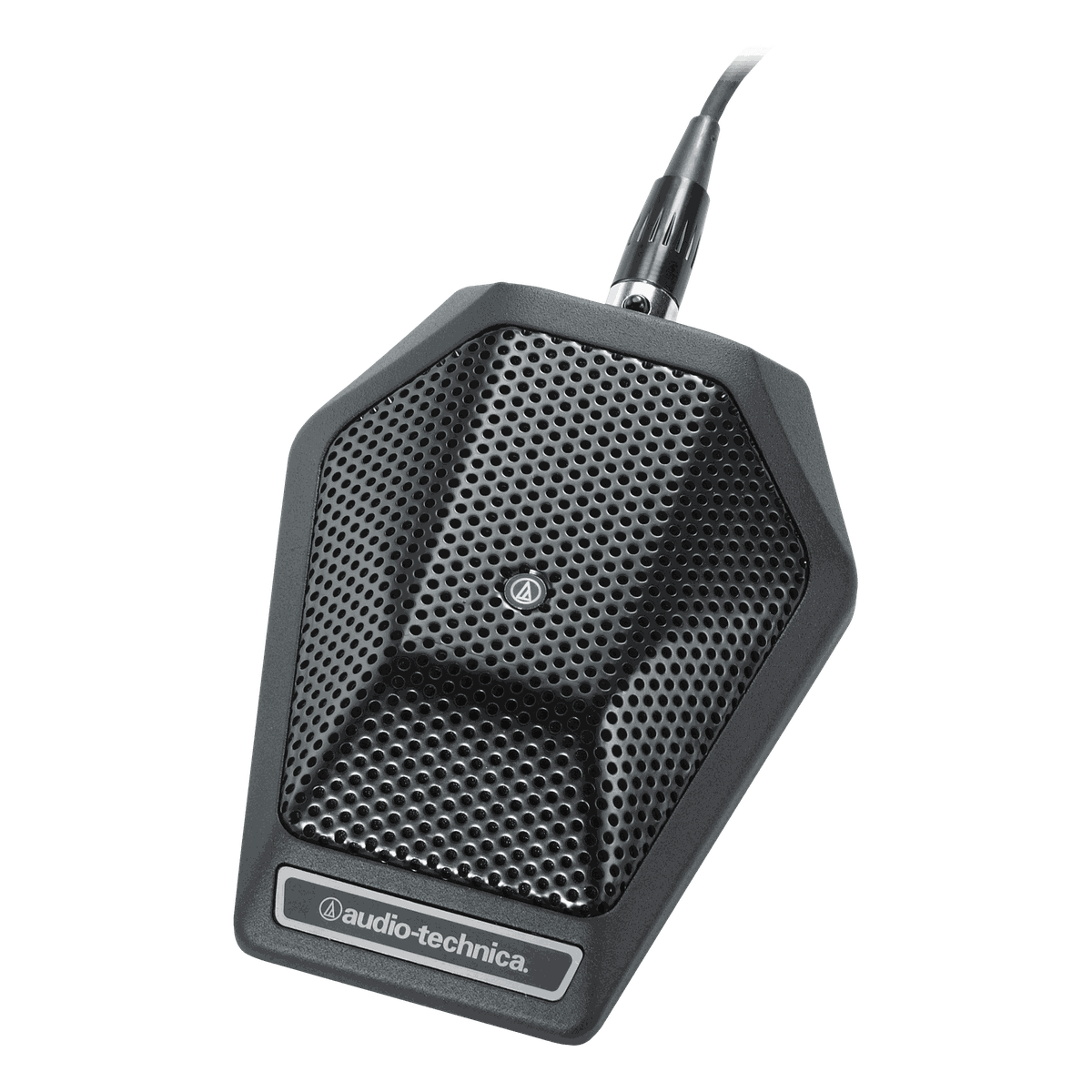

Audio Technica U851R
Boundary Microphone

Description:

Featuring breakthrough audio and mechanical design innovations, the phantom-powered U851R offers outstanding speech intelligibility and transparent sound quality for surface-mount applications. The microphone is equipped with a PivotPoint™ rotating output connector, UniSteep® filter and UniGuard™ RFI-shielding technology. It accepts interchangeable condenser elements—available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851R is equipped with self-contained electronics, eliminating the need for an external power module.

Features:

Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
PivotPoint™ rotating output connector allows cable to exit from either the rear or the bottom of the microphone
Superior off-axis rejection for maximum gain before feedback
UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Self-contained electronics eliminate need for external power module
Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
Low-profile design with low-reflectance finish for minimum visibility
Available in two colors: black (U851R) and white (U851RW)

Specifications:

ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Half-cardioid (cardioid in hemisphere above mounting surface)
FREQUENCY RESPONSE: 30-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY: –34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 134 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 108 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
SWITCH: Flat, roll-off
WEIGHT: 9.2 oz (262 g)
DIMENSIONS: 4.25" (108.0 mm) long, 3.31" (84.0 mm) maximum width, 0.91" (23.0 mm) height
OUTPUT CONNECTOR: TB3M-type
CABLE: 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM-type connectors
OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
ACCESSORY FURNISHED: Soft protective pouch
