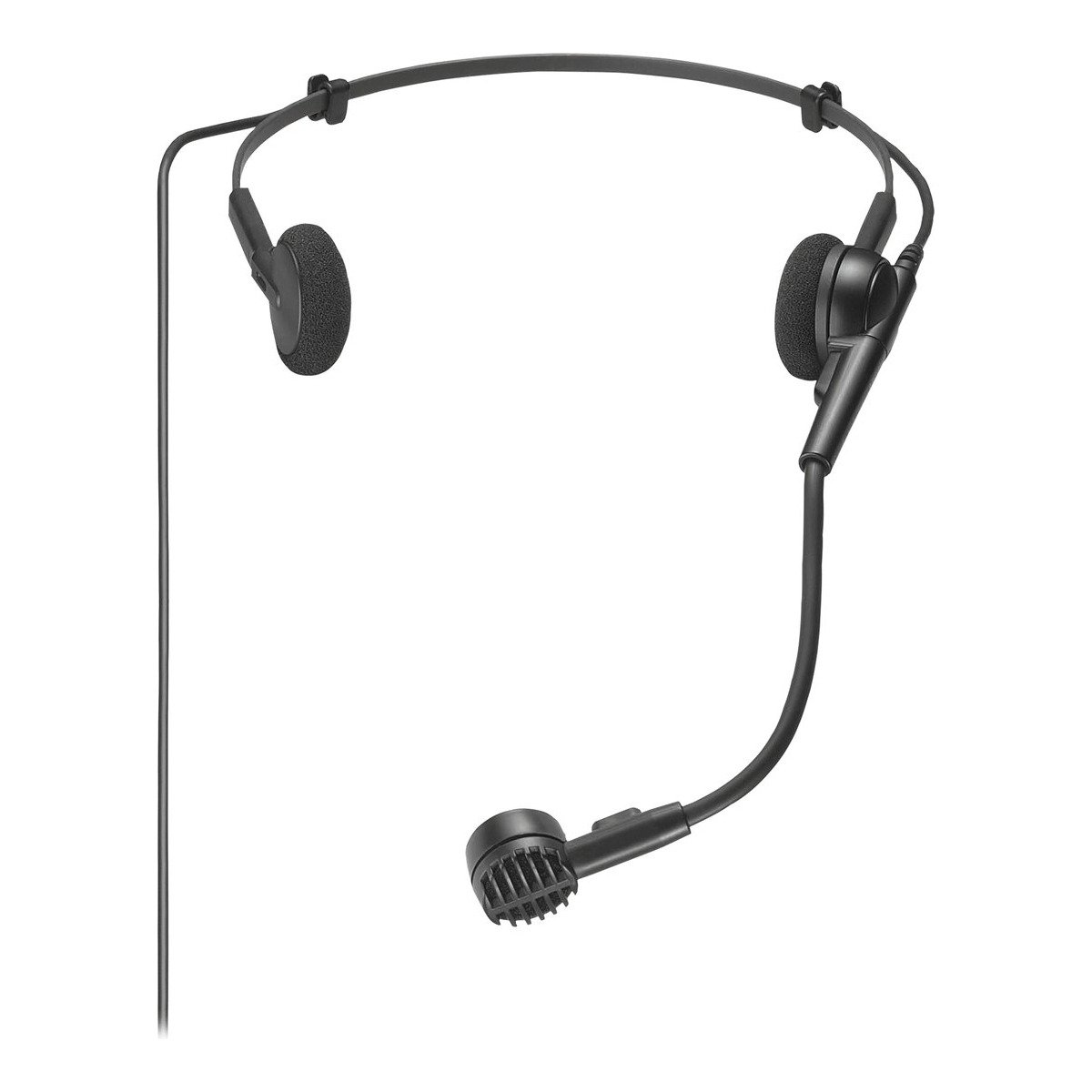

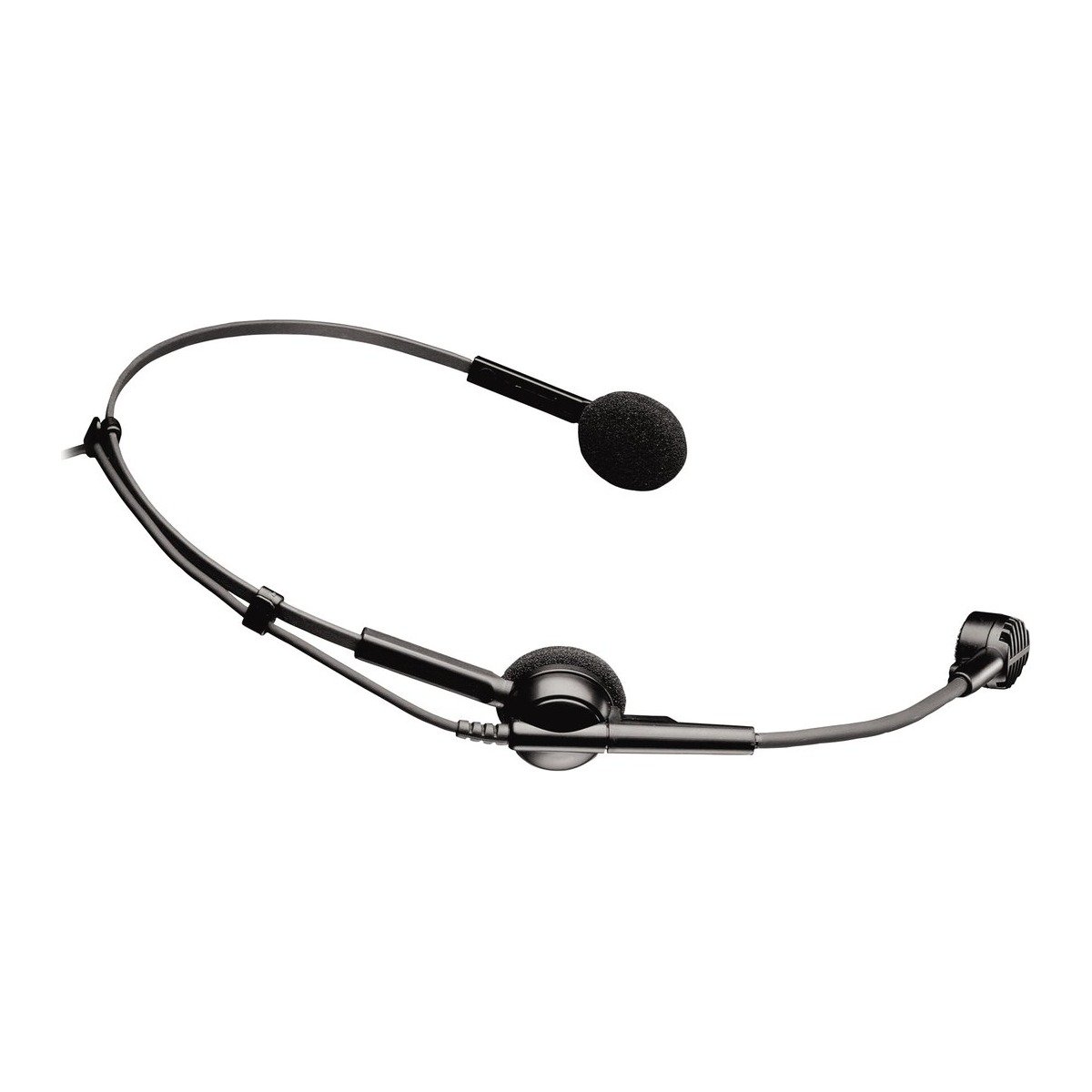

Audio Technica ATM75cW Microphone

Audio Technica ATM75cW

Audio Technica ATM75cW
G&G Price: $95
ATM75 headworn cardioid condenser microphone only, terminated for use with UniPak transmitter. Includes windscreen and cable clip.
List Price: $159

Features:

Professional-quality vocal pickup with hands-free operation
Low-visibility headband provides stable, comfortable fit
Pivot-mounted flexible mic boom descends from left or right side
Belt-mounted power module operates on battery or phantom power
55" (1.4 m) cable permanently attached between microphone and power module
Also available as:

ATM75c -- less power module; 7.2' (2.2 m) cable, unterminated; Wiring info (pdf - 67KB)
ATM75cW -- less power module; 55" (1.4 m) cable terminated with 4-pin HRS connector for A-T UniPak™ wireless systems

Specifications:

Element: Condenser
Phantom Power Requirements: 9 - 52V, 2 mA typical
Polar Pattern: Cardioid
Battery Type: 1.5V AA/UM3
Frequency Response: 60 - 15,000 Hz
Battery Current/Life: 0.4 mA/2000 hours typical
Open Circuit Sensitivity: PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa, BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa
Switch: Off/on-flat/on-roll-off
Impedance: PHANTOM: 200 ohms, BATTERY: 270 ohms
Low Frequency Roll-off: 80 Hz, 18 dB per octave
Maximum Input Sound Level: PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D., BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D.
Weight: 2.1 oz (60 g)
Signal to Noise Ratio: 58 dB, 1 kHz at 1 Pa
Power Module: In-line
Dynamic Range (Typical): PHANTOM: 96 dB, 1 kHz at Max. SPL, BATTERY: 85 dB, 1 kHz at Max. SPL
Output Connector: XLRM-type (power module)

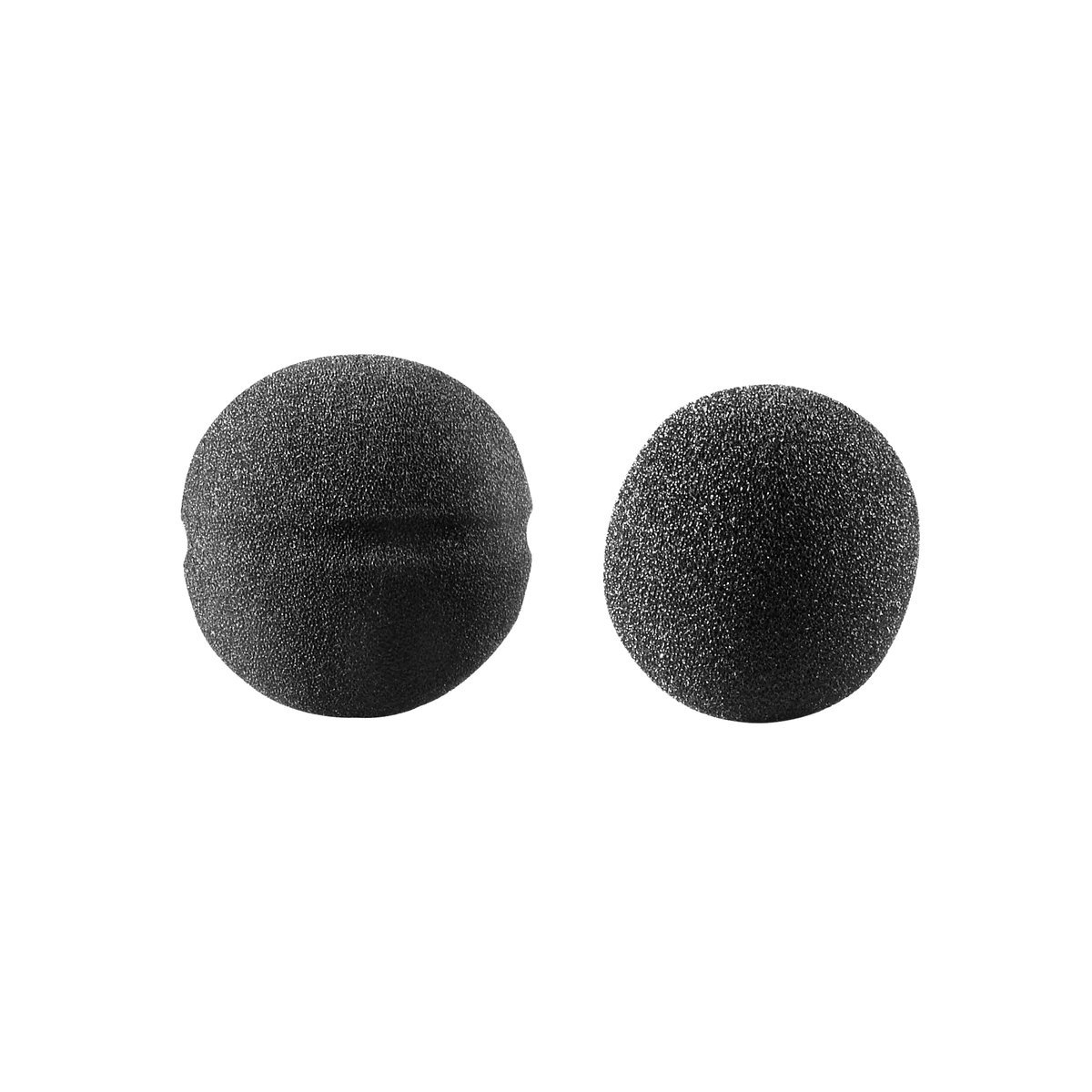

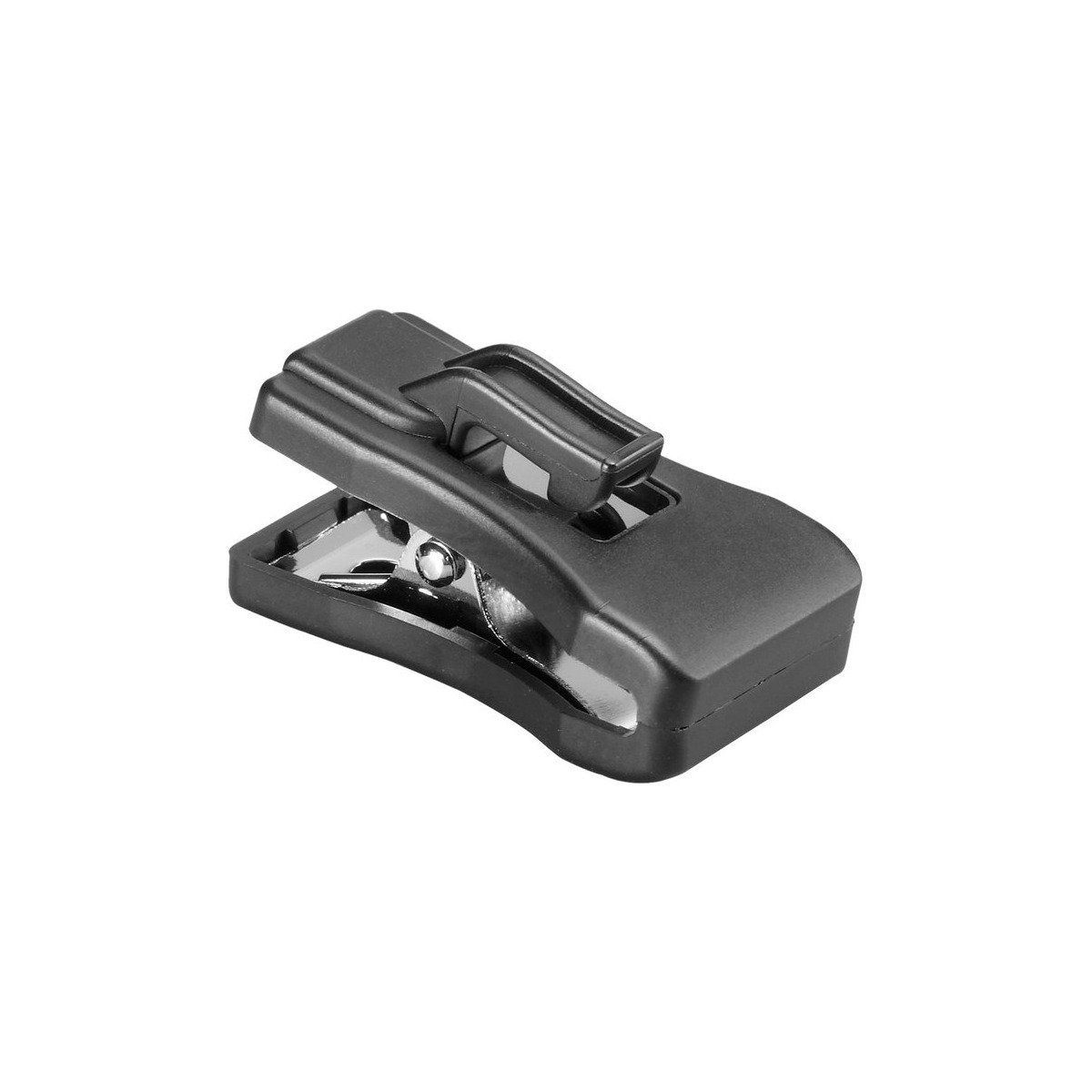

Accessories Furnished: AT8139L large windscreen; AT8139S small windscreen; AT8439 clothing clip; AT8530 power module (attached); battery
