Audio Technica ATM73cW

Click for complete info Audio Technica ATM73cW
G&G Price: $110

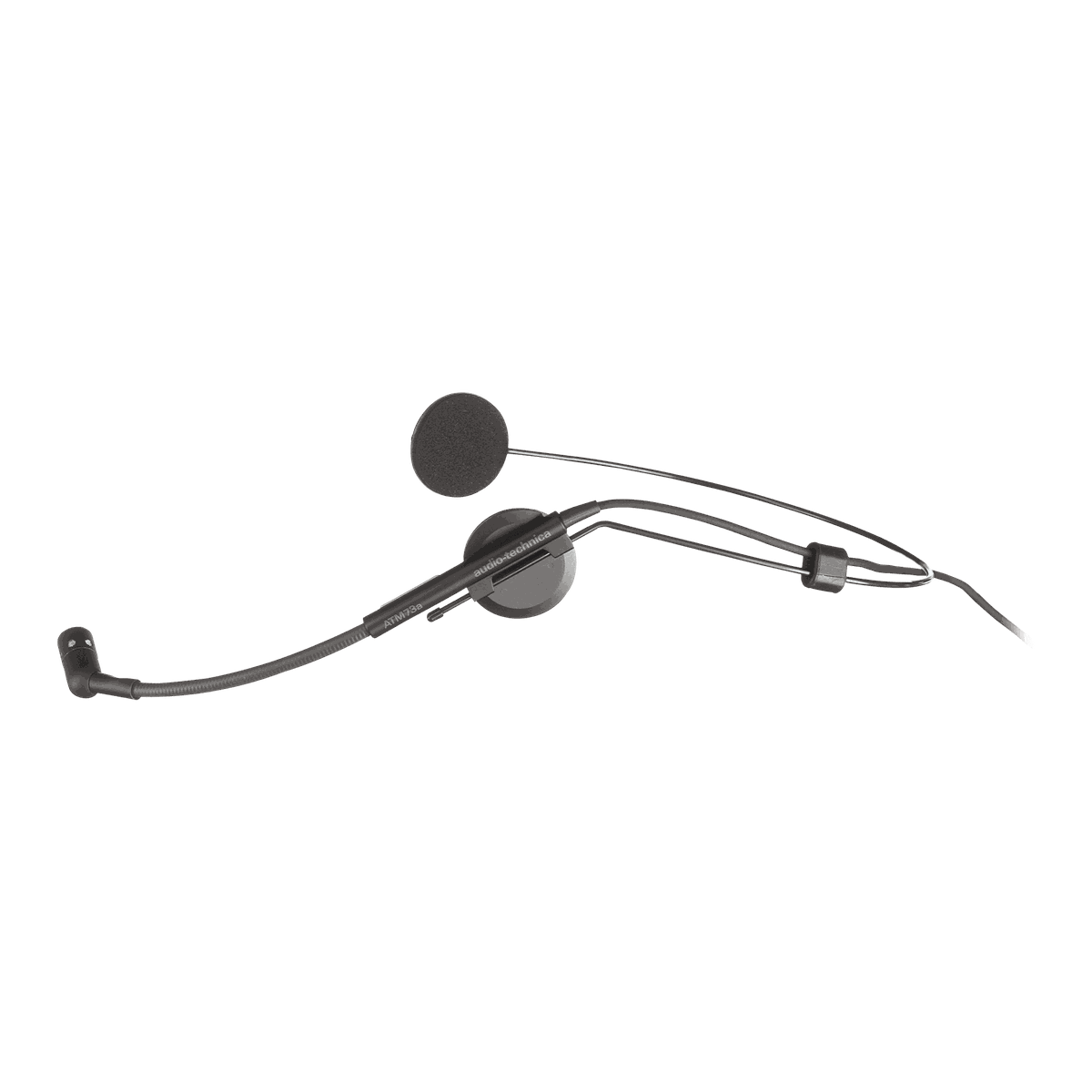

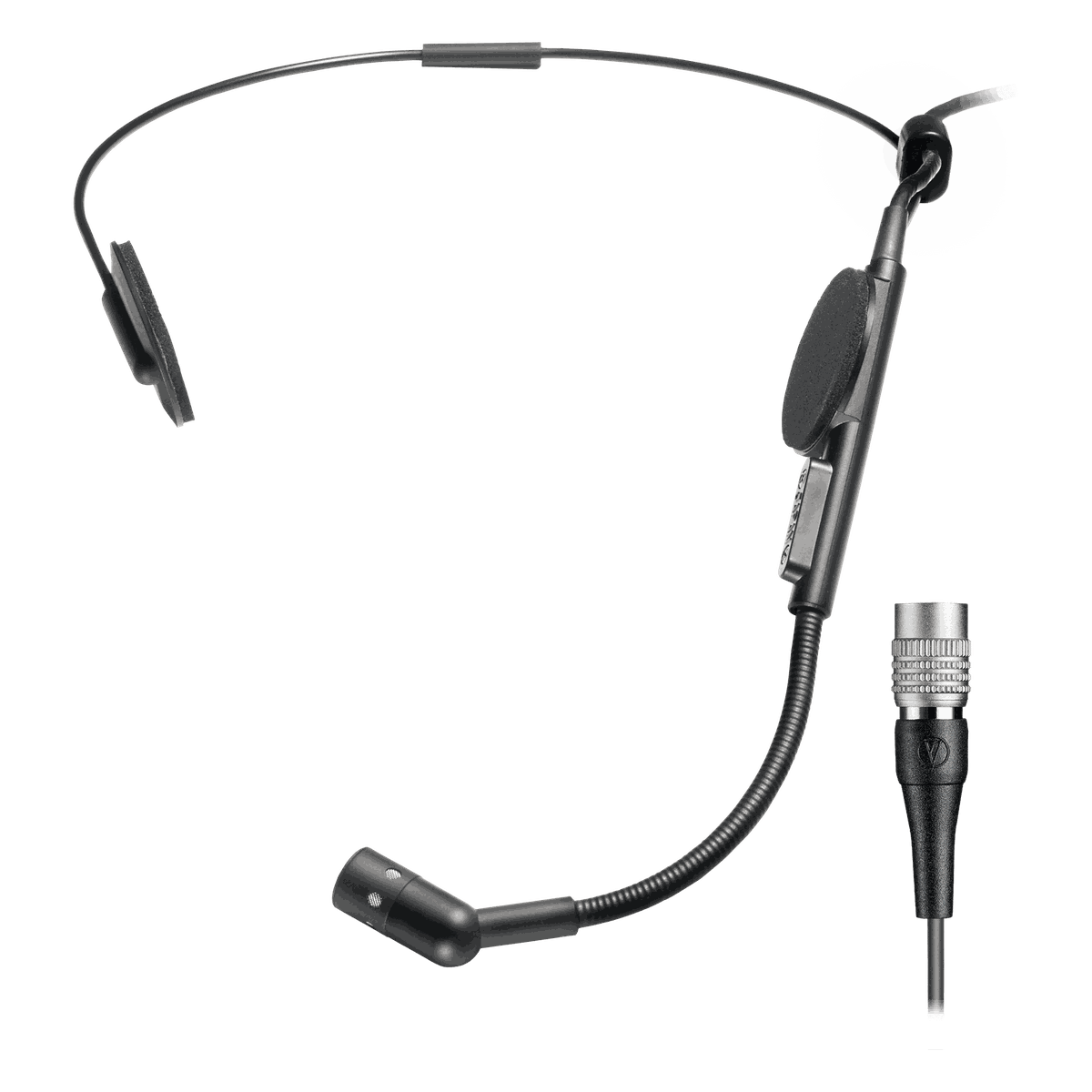

ATM73a headworn cardioid condenser microphone only, terminated for use with UniPak transmitter. Includes windscreen.
List Price: $180

Features:
  • Ideal for drummers, keyboard players or anyone requiring hands-free operation
  • Comfortable, unobtrusive headband design with side-of-mouth pickup
  • 3' (0.9 m) cable permanently attached
  • Cable terminated with 4-pin HRS connector for A-T UniPak™ wireless systems

Specifications:
  • Element: Condenser
  • Phantom Power Requirements: 9 - 52V, 2 mA typical
  • Polar Pattern: Cardioid
  • Battery Type: 1.5V AA/UM3
  • Frequency Response: 60 - 15,000 Hz
  • Battery Current/Life: 1 mA/1000 hours typical
  • Open Circuit Sensitivity: -56 dB (1.5 mV) re 1V at 1 Pa
  • Switch: Off/on-flat/on-roll-off
  • Impedance: 200 ohms
  • Low Frequency Roll-off: 150 Hz, 6 dB per octave
  • Maximum Input Sound Level: 135 dB SPL, 1 kHz at 1% T.H.D.
  • Weight: 1.1 oz (31 g)
  • Signal to Noise Ratio: 60 dB, 1 kHz at 1 Pa
  • Power Module: In-line
  • Dynamic Range (Typical): 101 dB, 1 kHz at Max. SPL

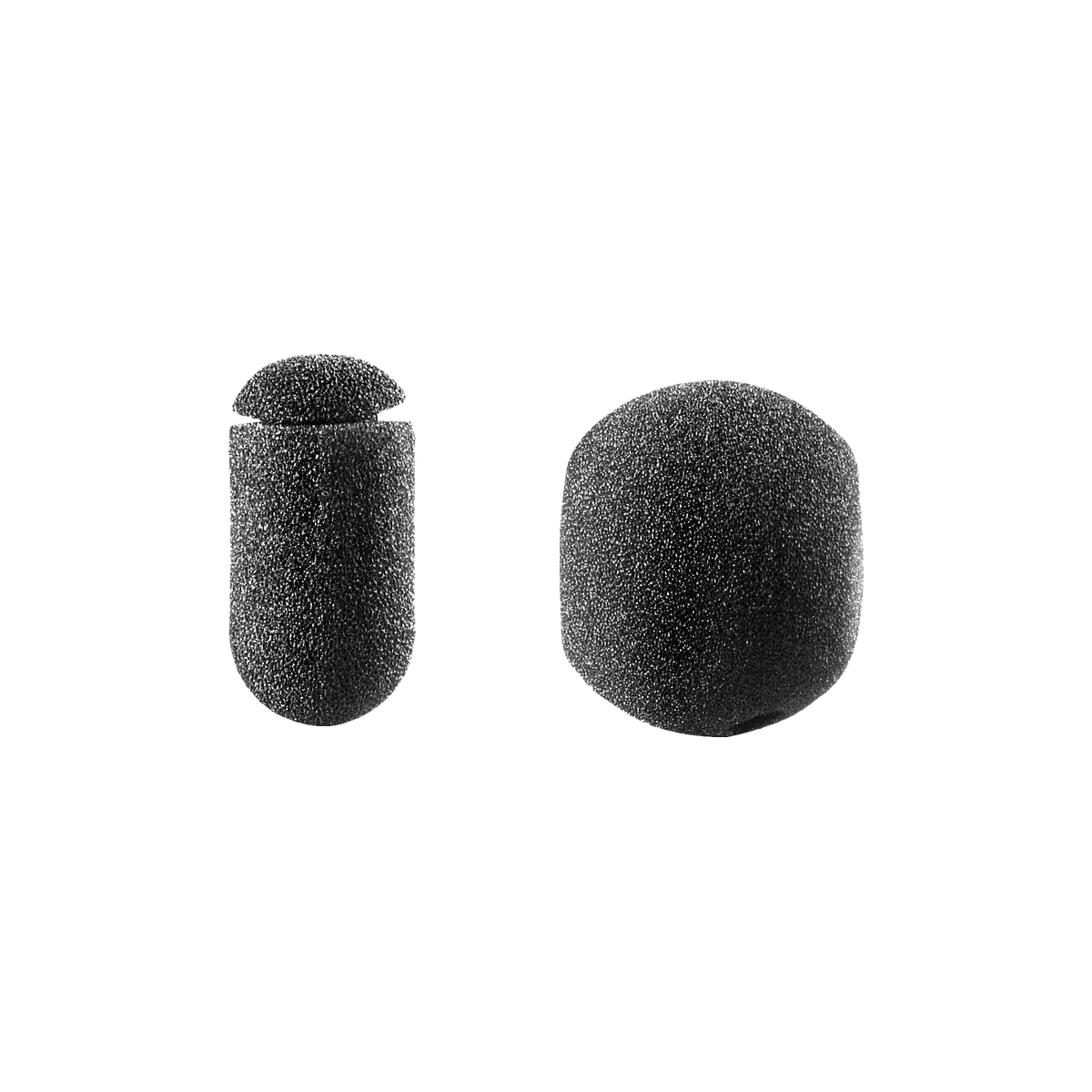

  • Accessories Furnished: Windscreen
