Anchor Portacom
Wired Intercom Systems



Anchor COM-40FC G&G Price: $1,982 Want a better price? 4 Headset - No Cables Package Includes: PC-100 power console, four dual earpiece H-200 headsets, four BP-200 belt packs, and one (CC-15F) deluxe carrying case. Cables not included. List Price: $2,252



Anchor COM-60FC G&G Price: $2,844 Want a better price? 6 Headset - No Cables Package Includes: PC-100 power console, six dual earpiece H-200 headsets, six BP-200 belt packs, one B3-100 branch box and one CC-15F deluxe carrying case. Cables not included. List Price: $3,232



Anchor COM-40FC/C G&G Price: $2,232 Want a better price? 4 Headset with Cables Package Includes: PC-100 power console, four dual earpiece H-200 headsets, four BP-200 belt packs, four EX-50M 50' cables, one CC-15 deluxe carrying case and one CC-PC cable bag. List Price: $2,537



Anchor COM-60FC/C G&G Price: $3,295 Want a better price? 6 Headset with Cables Package Includes: PC-100 power console, six dual earpiece H-200 headsets, six BP-200 belt packs, one B3-100 branch box, seven EX-50M 50' cables, one CC-15 deluxe carrying case and one CC-PC cable bag. List Price: $3,742

Accessories:
PC-100	Power Console powers up to 20 BP-200 belt packs; 4	$277
BP-200	Belt Pack w/volume control, A/B channel switch and mic on/off switch; call light; standard XLR-3 line connector and XLR headset connector	$175
H-200	Headset-dual-earpiece w/5' cable and female XLR-4 connector	$175
H-200S	Headset-Single-earpiece w/5' cable and female XLR-4 connector	$175
B3-100	Branch Box - expanding applications w/1 input, 3 outputs	$127
PGM-100	Program/Mixer feedback module - line in/out XLR	$208
RM-100	Rack for one or two PC-100s	$74
HC-PC	Case w/custom cut foam	$152
CC-PC	Canvas cable bag	$48
AC-20	AC power adaptor (replacement)	$48
Cables:
EX-25M	25' XLR cable	$43
EX-50M	50' XLR cable	$61
EX-75M	50' XLR cable	$85

Description:

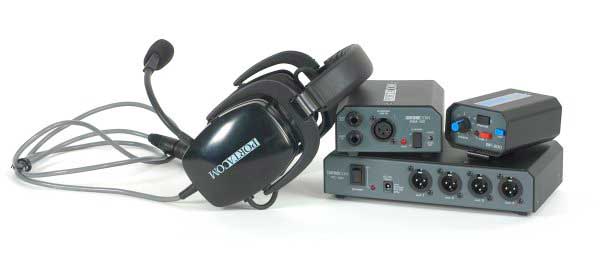

PortaCom is a flexible, high-performance wired intercom system. Built smart and simple, PortaCom gives you two channels without sacrificing power or quality. It is expandable, portable or rack mountable. It even has an optional batter supply module for remote locations. Best of all PortaCom is priced to sell to the junior high school theater, the local cable studio or the high school football coach.

Features:

2 Channel, Wired Full Duplex Systems High Performance - Low Cost AC/DC Operable Portable or Rackmountable(1 U Rack Space) Durable Lightweight Metal Packs Up to 20 Headset Capacity Standard Microphone Cable/3 Pin XLR Connectors Easy to Setup and Operate Comfortable Lightweight Noise Cancelling Headsets Optional Single, Dual or Mixed Headsets

Specifications:

Operating distance: up to 2,500ft. or (765m) (combined cable length) Normal line level: -15dBV Signal-to-noise ratio: -65dB Distortion: < 0.5% Interconnecting cables: standard 1-pair shielded mic cable with 3-pin XLR connectors (heavy-duty cable recommended for cable runs greater than 250ft.) Compatibility: generally compatible with industry standard system (contact Anchor Audio for more information)
