Anchor Explorer Pro
Sound System



	Anchor EBP-7500 Single Mic System G&G Price: $1,505 Want a better price? Includes: EXP-7500U1 with wireless receiver, SS-550 speaker stand, your choice of a wireless mic: WH-6000 handheld mic LM-60 lapel (lavalier) HBM-60 headband mic CM-60 collar mic EM-60T over-ear mic **Please indicate microphone choice in the COMMENTS AREA of our Checkout page. List Price: $1,882
	Anchor EBP-7500 Dual Dual Mic System G&G Price: $2,086 Want a better price? Includes: EXP-7500U2 with 2 wireless receivers, SS-550 speaker stand, your choice of any TWO wireless mics: WH-6000 handheld mic LM-60 lapel (lavalier) HBM-60 headband mic CM-60 collar mic EM-60T over-ear mic **Please indicate TWO microphone choices in the COMMENTS AREA of our Checkout page. List Price: $2,608
	Anchor EDP-7500 Single Mic System G&G Price: $1,942 Want a better price? Includes: EXP-7500U1 wireless receiver, EXP-7501 companion speaker, SC-50 connection cable, 2 SS-550 speaker stands, your choice of a wireless mic: WH-6000 handheld mic LM-60 lapel (lavalier) HBM-60 headband mic CM-60 collar mic EM-60T over-ear mic **Please indicate microphone choice in the COMMENTS AREA of our Checkout page. List Price: $2,428
	Anchor EDP-7500 Dual Dual Mic System G&G Price: $2,523 Want a better price? Includes: EXP-7500U2 with 2 wireless receivers, LIB-7501 companion speaker, SC-50 connection cable, 2 SS-550 speaker stands, your choice of any two wireless mics: WH-6000 handheld mic LM-60 lapel (lavalier) HBM-60 headband mic CM-60 collar mic EM-60T over-ear mic **Please indicate TWO microphone choices in the COMMENTS AREA of our Checkout page. List Price: $3,154
	Anchor EXP-7500 G&G Price: $795 Want a better price? Explorer Pro Sound System Basic speaker only List Price: $993
	Anchor EXP-7500U1 G&G Price: $1,057 Want a better price? Explorer Pro w/built-in wireless receiver List Price: $1,321
	Anchor EXP-7500U2 G&G Price: $1,319 Want a better price? Explorer Pro w/2 built-in wireless receivers List Price: $1,649
	Anchor EXP-7501 G&G Price: $275 Want a better price? Unpowered Companion speaker List Price: $344

Accessories:
SS-550	Heavy-duty speaker stand	$129
MSB-201	Mic stand with boom	$76
HC-1650L/X	Custom traveling hardcase on wheels w/extension handle	$257
SOFT TOTE	Nylon case cover on rollers	$154
CC-550	Speaker stand bag	$114
BWK-II	Mini-mix input mixer	$202
Microphones:
WH-6000	Anchor UHF wireless handheld mic Want a better price?	$319
WB-6000	Anchor UHF wireless body-pack transmitter Want a better price?	$240
EM-60T	UltraLite, barely seen, over the ear mic w/tan mic arm (for use with WB-6000 body-pack transmitter)	$99
CM-60	Collar Mic (for use with WB-6000 body-pack transmitter)	$99
LM-60	Lapel (Lavalier) Mic (for use with WB-6000 body-pack transmitter)	$99
HBM-60	Headband Mic (for use with WB-6000 body-pack transmitter)	$99
MIC-90	Professional dynamic cardioid pattern handheld mic (wired mic that plugs directly into speaker)	$121
UHF-6400	Receiver/transmitter set w/ choice of mic - Handheld mic, Collar mic, Lapel mic or Headband mic. Want a better price?	$437
Cables:
SC-50NL	50' speaker cable connects XTR-6000 to XTR-6001	$67
SC-100NL	100' speaker cable connects XTR-6000 to XTR-6001	$100
6000-14P	Mini 4-pin XLR to 1/4" phone plug for wireless transmission of CD, mixer or metronome	$33
6000-18P	Mini 4-pin XLR to 1/8" phone plug for wireless transmission of CD, mixer or metronome	$33
XLR-50MF	50' mic cable w/XLR line out to line in for mic extension	$58

Description:

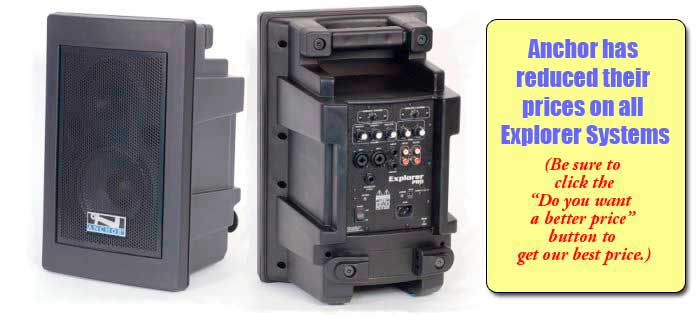

The Explorer Pro offers the latest in Anchor Audio sound system technology - Class D amplifier, "voice over" music function, AC/DC operation, 110/220V power supply and much more. Single or dual UHF wireless receivers can be installed. This unit is powerful enough to operate the slave companion speaker in AC or DC mode. The Explorer Pro will soon be the favorite of teachers, rental facilities and places of worship.

Features:

True AC/DC, 110/220V Power Supply 1 or 2 Wireless Receivers - 16 User-Selectable Channels Operates from 12V Power Source - such as car power port LED displays for Battery level and Charge Condition High-Efficiency Amplifier and Full-Range Speaker System Deliver High Fidelity Sound "Voice Over" Music Feature Two Universal Input jacks 110 dB @ 1 Meter

Specifications:

Rated power output: 60 watts AC mode / 30 watts DC mode W/ companion speaker: 80 watts AC mode / 60 watts DC mode Max SPL @ rated power: 110 db @ 1 meter Frequency response: 80 Hz - 16 kHz Microphone inputs: Lo-Z (1 k Ohms), balanced, XLR (2 universal jacks) 12 VDC condenser mic (phantom) power Hi-Z (10 k Ohms), unbalanced, 1.4"-phone Auxiliary (line) input: Hi-Z (10 k Ohms), unbalanced, 1/8" stereo, 1.4"-phone Sensitivity for rated output Line: -8.4 dBV (380 mVrms) Mic (unbalanced): -49 dBV (3.63 mVrms) Mic (balanced): -49 dBV (3.63 mVrms) Line output (post fader): Lo-Z, buffered, dual RCA/1/4" unbalanced/balanced Speaker output: 2 Ohms unswitched, 1.4"-phone AC Power requirements: 90 - 264 VAC, 50/60 Hz Dimensions (HWD): 16.5 x 10.5 x 10", 42 x 27 x 25 cm Weight: 23 pounds, 10.4 Kg.
