Anchor AnchorMAN
Wireless Intercom System

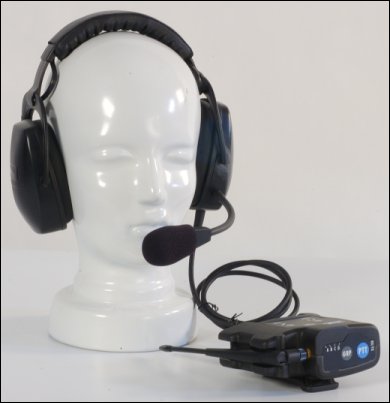

Anchor AnchorMAN-40 G&G Price: $3,262 Want a better price? Four headsets, your choice of H-200 dual or H-200S single ear muff, four wireless belt packs BP-900 and one gang charger GC-900 in a sturdy cardboard carrying case (Please specify headset choice in COMMENTS BOX when making an on-line purchase) List Price: $4,166



Anchor BP-900 Belt Pack G&G Price: $632 Want a better price? BP-900 Belt Pack for AnchorMAN system List Price: $790



Accessories:
H-200S	Headset-Single-earpiece w/5' cable and female XLR-4 connector	$175
H-200	Headset-dual-earpiece w/5' cable and female XLR-4 connector	$175
GC-900	Gang Charger (one supplied in system)	$34
HC-1600A	Pelican Case with Custom Cut Foam	$232

Description:

The AnchorMAN is a new wireless intercom system that provides unprecedented ease of use and flexibility. The MAN in AnchorMAN stands for Mobile Audio Network. Designed for portability, it requires no base station. However, the functionality of a base station is not abandoned. Each belt pack is capable of listening to 4 belt packs at one time. Compatible frequency groups are pre-selected to allow operation in up to four separate groups with no interference. There are two ranges specified for the BP-900 – Simplex & Duplex. Simplex Range refers to the distance at which you can listen to another speaker without your transmitter on. We have achieved an excellent Simplex Range of up to 2500’. Duplex Range is the distance at which you can listen to another speaker while you are also transmitting. The specified Duplex Range is 250’. When belt packs venture beyond their Duplex Range, operation automatically converts to Simplex. One of the goals for the AnchorMAN was to design a system that is not only efficient to build, but easy to build consistently. Quality control is maintained by proprietary, automated testing and calibration algorithms that ensure each belt pack is tested against a tightly controlled standard. AnchorMAN is easy to use and does not require a sixty page manual to operate. Set your group selections, the microphone sensitivity and the headset volume and you are ready to begin using AnchorMAN. You’ll find AnchorMAN costs much less than traditional wireless intercom systems. Self registration for use of AnchorMAN is easy and can be found at www.fcc.gov.

Features:

There is no base station but the functionality of a base station is not abandoned. AnchorMAN belt packs talk directly to one another. The system allows duplex communication by up to 4 users and an unlimited number of people can listen in. The system is easily expandable – just purchase additional belt packs and headsets. The signal beats the competition. Unlike 2.4 GHz products, AnchorMAN operates with a longer wave signal that can pass through most walls in duplex mode up to 250 feet. In duplex mode each belt pack can listen and speak to four belt packs at one time. Just when a 2.4 MHz loses signal, the AnchorMAN automatically switches to simplex mode to boost the range to about 2500 feet. Simplex Mode refers to the range at which you can listen to another speaker without your transmitter on. If you are having difficulty hearing someone, let go of the PTT button and listen up. Belt packs are comfortable to wear and are made of rugged materials. Buttons are clearly labeled and operation is logical and easy. No complex set up or tuning is needed. Compatible frequency planning and selection are performed in the Anchor factory. Hands free operation is offered by using the voice activation feature. Just adjust the microphone sensitivity on the side of the belt pack for your environment. Now just speak into the dynamic microphone to activate transmission. State of the art electronics and software developed for AnchorMAN allows for breakthrough pricing. Churches, small theaters, athletic departments and other budget conscious customers can enjoy high performance wireless intercom features for the price of the most antiquated wired systems.
