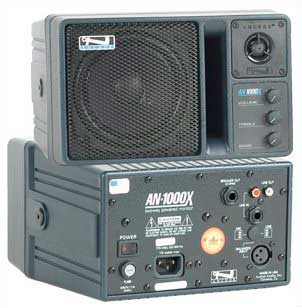

Anchor AN-1000X
Powered Monitor



	Anchor AN-1000X G&G Price: $382 Want a better price? Two-way Speaker Monitor List Price: $478
	Anchor AN-1001X G&G Price: $131 Unpowered companion speaker to AN-1000X
	Anchor AN-1001X/70 G&G Price: $152 Two-way Speaker Monitor with internal 70 volt transformer



Accessories:
SS-250	Speaker Stand	$110
MSB-201	Mic stand with boom	$76
HC-1550	Hard case - holds 2 AN-100 & Mics	$166
HC-1610B	Hard Case - Projector Protector	$257
CC-100XL	Holds Speaker Monitor w/SB-1 & Mic	$56
CC-100	Holds Speaker Monitor w/SB-1 & Mic	$46
CC-550	Speaker stand bag	$114
Microphones:
MIC-90	Professional dynamic cardioid pattern handheld mic (wired mic that plugs directly into speaker)	$121
Brackets:
SB-1BK	Stand Mount - Black	$70
SB-3W	Ceiling Mount Bracket - White	$29
SB-3BK	Ceiling Mount Bracket - Black	$29
SB-360W	360� Swivel Wall Bracket - White	$35
SB-360BK	360� Swivel Wall Bracket- Black	$35
RM-1BK	Single Rackmount - Black	$76
RM-12BK	Dual Rackmount - Black	$86
Cables:
SC-50	50’ Speaker Cable; 1/4” phone plugs	$38
LINE-30M	30� Line Cable	$39

Description:

The AN-1000X is the most versatile powered monitor on the market. You can add it to an A/V rack setup, use it as a studio monitor, install it in a trade show booth, or place it in the Captain's quaters on a US Navy warship to monitor activities in the intelligence room. The AN-1001X/70 is an unpowered speaker with a 70 Volt transformer that was developed for sound contractors who want to use this incredibally clear speaker in large scale installations. Mounting hardware allows the AN-1001X/70 to be positioned on the wall, on the ceiling or in an A/V rack.

Features:

AC Powered 50 Watt Amp & High Efficiency Speaker Two-Way Speaker System Magnetically Shielded Speaker System Bass and Treble Controls

Specifications:

Rated power: 50 watts continuous @ 4 Ohms Frequency response: 65 Hz - 20 kHz +/- 3dB Max SPL @ rated power: 103 dB @ 1 meter Balanced input: mic / line configurable, female XLR, switchable phantom power Line input: Hi-Z, unbalanced, 1/4"-phone & RCA Line output: Lo-Z, RCA, buffer isolated line-level Speaker output: 8 Ohms, unswitched, 1/4"-phone AC power requirements AN-1000X: 110 - 125Vac, 50/60 Hz, 90W Max AN-1000X/220: 208 - 240Vac, 50/60 Hz, 90W Max Dimensions (HWD): 5.25 x 8.4 x 9", 13 x 21 x 23 cm Weight: 9.5 lbs, 4.3 Kg
