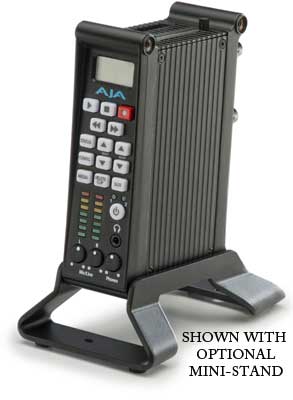

AJA KiPro Mini
Portable Digital File Recorder
 |
AJA KiPro Mini Ultra-Portable Digital CF Recorder G&G Price: $1,995 Apple ProRes 422, Ki AC Adapter, AC to 4-pin XLR, Records to CF cards (not supplied) Add to cart for a better price! IN STOCK! IN STOCK! FREE UPS SHIPPING (Ignore any shipping cost in your cart - you will not be charged.) |
Ki Pro Mini is the smallest and simplest way of connecting production and post, anywhere shooting takes you. With a miniature form factor that makes for the smallest camera and recorder package available, Ki Pro Mini is powerful, supporting all four types of Apple ProRes 422 (including HQ, LT and Proxy). The newest member of the award winning Ki Pro family, Ki Pro Mini simplifies the link between production and post by unobtrusively fitting in small spaces and acquiring on the best codec for use with Apple Final Cut Studio, from any SDI or HDMI camera, regardless of format. With its high quality digital connectivity, you've got the perfect solution for portable on-set digital capture.
Ki Pro Mini's multi-purpose mechanical design and small form factor allow flexibility in mounting to the camera or tripod using industry standard mounting plates or shoe adapters. An optional Ki Pro Mini mounting plate offers a wide variety of hole-patterns for mating either side of the unit with virtually any camera accessory bracket. Like AJA's famous Ki Pro, KONA and Io HD desktop products, Ki Pro Mini offers unparalleled I/O quality. Within its portable and rugged form factor, Ki Pro Mini offers broadcast quality SD/HD digital I/O including SDI, HD-SDI and HDMI, two channels of balanced analog audio (2 XLRs) with switch selectable line/mic levels, and LTC timecode input. Control options are flexible, with front panel and web browser interfaces provided (Ethernet 10/100/1000 via an RJ45 connector). |
|
Video Input Digital:
SD and HD-SDI (1xBNC), SMPTE-259/292/296 Audio Input
Digital:
24-bit SDI embedded audio, 8 channel, 48kHz
Analog:
24-bit A/D, 2 channel balanced (2 XLR), 48kHz Audio Output
Digital: Network
10/100/1000 Ethernet (RJ45) Panel User Interface 3-line character display with dedicated buttons Timecode LTC timecode input via BNC Control LANC Loop (2 LANC connectors) Power
100-240 VAC (to supplied AC Adapter); |
|
Ki Pro Family Brochure Ki Pro Family Brochure Ki Pro Mini Dimensions Ki Pro Mini Mounting Options Mounting Plate Hole Drawing |
| Mini Mounting Plates | $75 | |
| Mini Stand | $74 | |
| Replacement/spare 120/240 AC to 12v DC 4-pin XLR power adapter | $93 |
